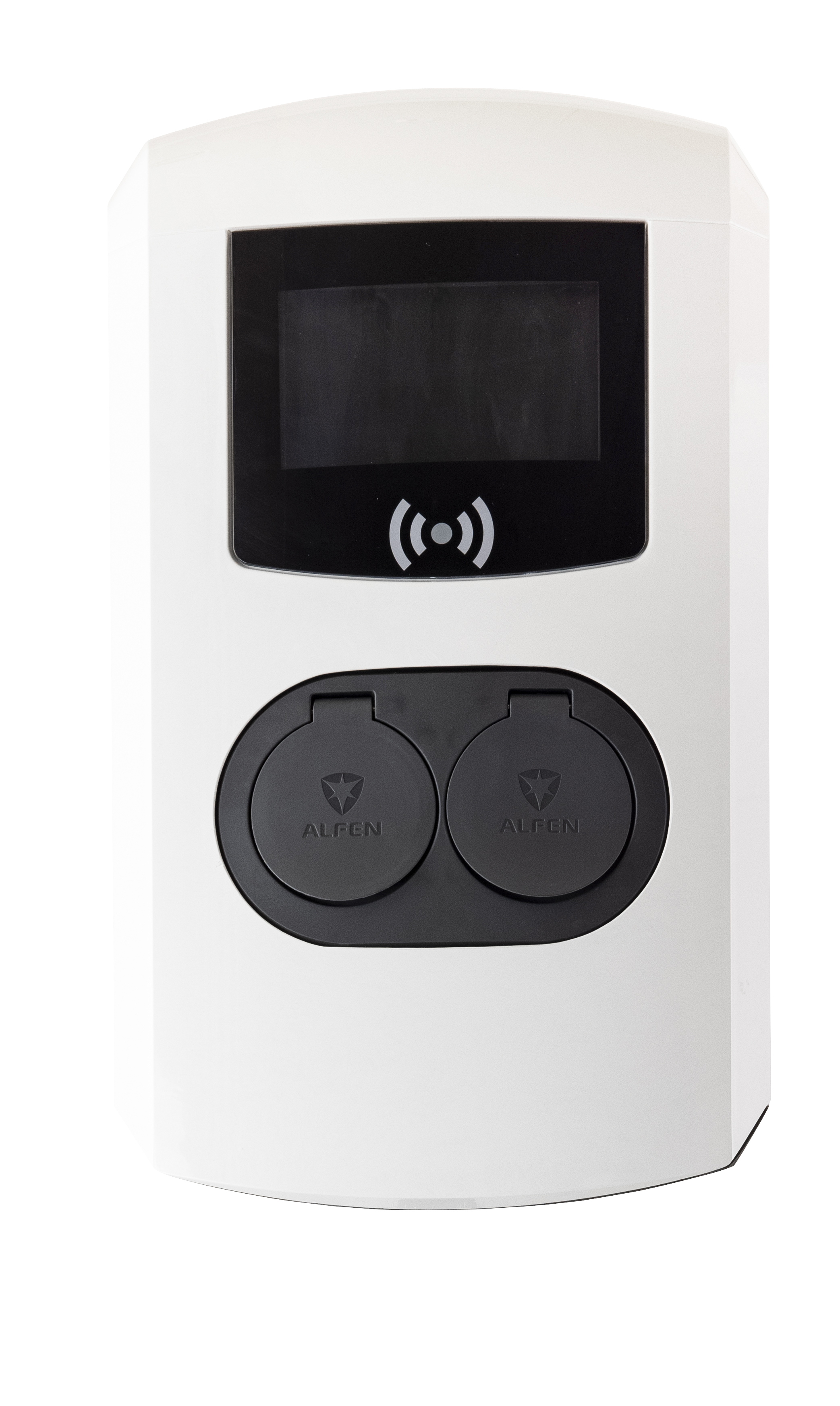

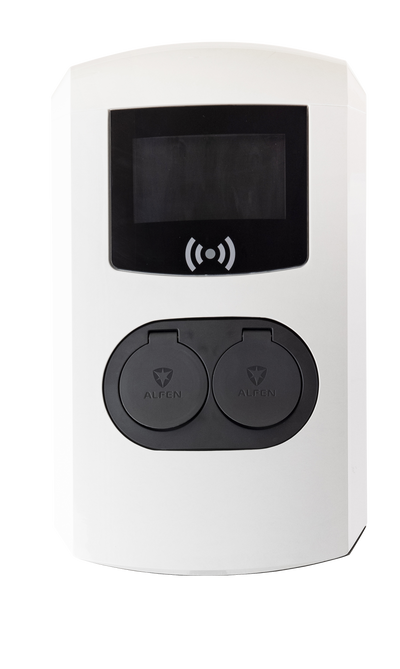

The Alfen Eve Double Pro-line is a professional AC charging station with two Type 2 sockets, designed for semi-public and commercial locations such as company headquarters, offices, hotels, parking lots, and shopping centers. It enables the simultaneous charging of two electric vehicles with up to 22 kW of power per socket.
The single-feeder version of the station is equipped with a large 7" color display, an RFID/NFC card reader, LTE connectivity, and Ethernet/LAN. Each socket features its own MID-certified energy meter and its own Type B residual current device (RCD), ensuring accurate billing and complete safety.
Thanks to OCPP protocol support, the station can be easily integrated with charging management and billing systems.
Key features and benefits:
Two Type 2 sockets – charge two vehicles simultaneously, up to 22 kW per socket.
7" color display – clear view of charging status and progress.
RFID/NFC authorization – access control for employees, guests, and customers.
LTE and Ethernet connectivity – remote management via OCPP 1.5 / 1.6 / 2.0.
MID meters for each socket – accurate energy measurement for billing.
Safety features – 2x Type B 30 mA RCD (separate for each socket).
Load balancing – active (P1 port) and Modbus TCP/IP support.
Cybersecurity – encrypted TLS 1.2 communication, signed software updates.
Durable housing – IP54 / IK10, resistant to environmental conditions and damage.

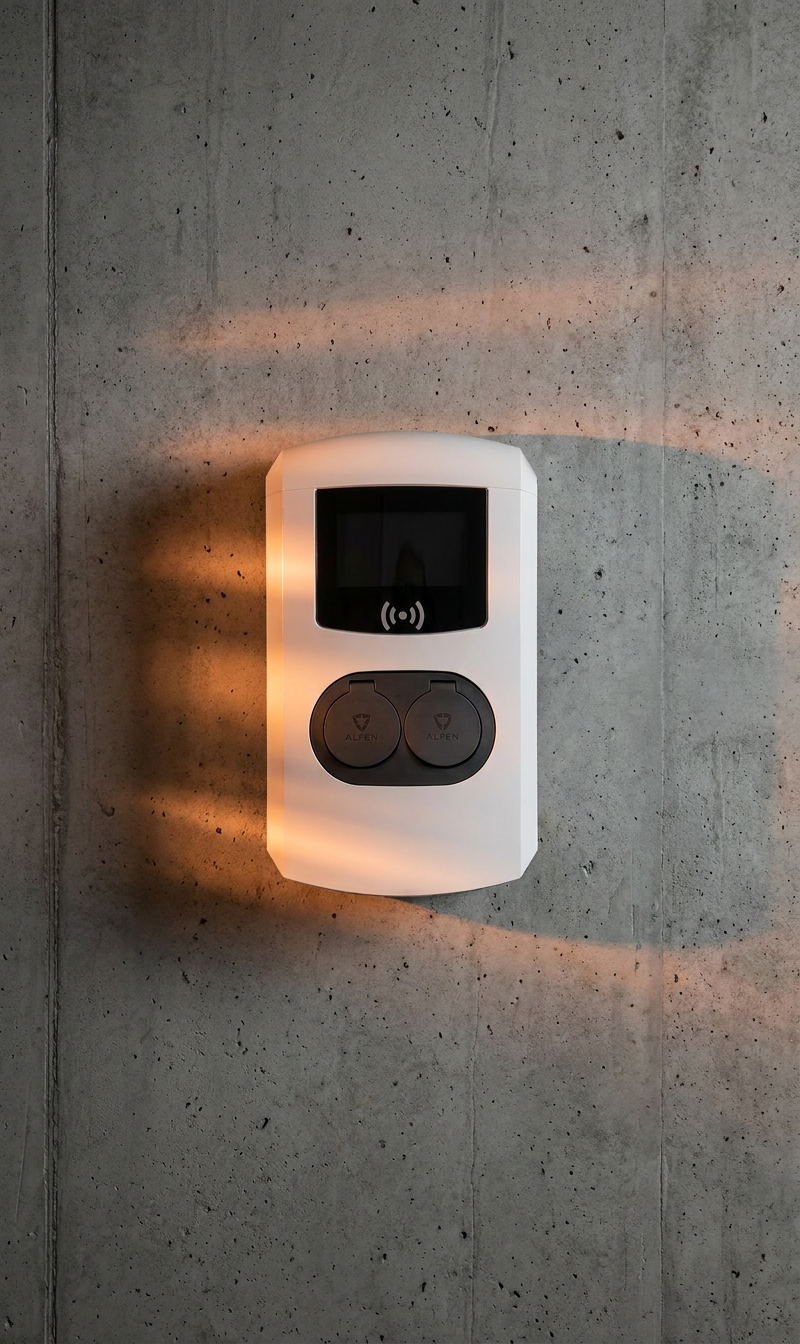

Flexible mounting – wall-mounted or on a dedicated mounting post (accessories).
Download product datasheet
Technical specifications:
| Parameter | Value |
|---|---|
| Model | Eve Double Pro-line 3PH1CB |
| Article number | 904461021 |
| Manufacturer | Alfen |
| Number of sockets | 2 |
| Socket type | Type 2 (IEC 62196-2) |
| Maximum power | 22 kW per socket |
| Maximum current | 32 A per phase |
| Voltage | 400 V (3 × 230 V), 50 Hz |
| Power supply | Single feeder cable |
| Power systems | TN-S, TN-C-S, TT, IT |
| Display | 7" TFT color, 800 × 480 px |
| Authorization | Plug & Charge, RFID/NFC, central system |
| Card reader | ISO/IEC 14443A/B, 13.56 MHz, MIFARE, DESFire |
| Connectivity | LTE Cat M1 (4G), GPRS (2G), Ethernet/LAN |
| Protocol | OCPP 1.5 / 1.6 (certified) / 2.0 |
| Energy meter | MID for each socket |
| Residual current protection | Type B 30 mA RCD for each socket |
| Connectors | RJ45 (Ethernet), RJ11 (P1 – active load balancing) |
| Load management | Standard, active (P1), Modbus TCP/IP |
| Protection rating | IP54 / IK10 |
| Operating temperature | -25°C to +40°C |
| Humidity | 5–95% |
| Housing material | Fiber-reinforced polyester (SMC) |
| Color | Front RAL 9016 (white), back RAL 7043 (gray) |
| Dimensions (H × W × D) | 590 × 338 × 230 mm |
| Weight | approx. 15 kg |
| Mounting | Wall or mounting post (art. 934459001, sold separately) |
| Warranty | 2 years |
