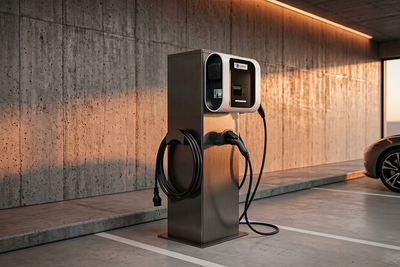

Dual charging station - Circontrol eNext Park AC 2x22 kW
10.749,59 zł netto
This is a modern, three-phase AC charging station with 2x22 kW power, designed for simultaneous charging of two electric vehicles. Ideal for public spaces, corporate parking lots, and commercial stations. Equipped with full connectivity — Ethernet, WiFi, 4G, and Bluetooth — and the OCPP 1.6J protocol ensuring integration with any charging management system.
The station is available in two versions — choose the appropriate one from the options above:
Socket version – two universal Type 2 sockets, the user connects their own charging cable.
Cable version – two Type 2 cables included in the set, ready to use without needing your own cable.
Key features and benefits:
Two charging points – simultaneous charging of two vehicles with up to 22 kW each, totaling 44 kW (64A).
Advanced connectivity – supports Ethernet, WiFi, 4G, and Bluetooth, enabling a constant internet connection and remote station management.
OCPP 1.6J protocol – full integration with charging management systems, also prepared for OCPP 2.0.1.
RFID reader – compliant with ISO/IEC 14443 A&B, MIFARE Classic/DESFire EV1, allowing for secure access authorization and user control.
Multi-language LCD display – clear screen with intuitive operation and information about the charging session.
Dynamic Load Management (DLM) – automatic optimization of charging power throughout the electrical installation.
PWM power control – compliant with ISO/IEC 61851-1 ensuring precise control of the charging process.
Safety features – 6mA DC leakage detection, contactor welding detection, socket locks, protection against overload and unauthorized access.
Durable casing – IP54/IK10, ABS/PC material, reliable in all weather conditions.
Personalization – possibility to place your own logo, choice of wall mounting or aluminum pole.
Technical data:
| Parameter | Socket version | Cable version |
|---|---|---|
| Max. power | 2x 22 kW | 2x 22 kW |
| Number of points | 2 | 2 |
| Connector | Type 2 socket | 2x Type 2 cable |
| Connectivity | Ethernet, WiFi, 4G, Bluetooth | Ethernet, WiFi, 4G, Bluetooth |
| Protocol | OCPP 1.6J / ready for 2.0.1 | OCPP 1.6J / ready for 2.0.1 |
| Authorization | RFID (ISO/IEC 14443 A&B) | RFID (ISO/IEC 14443 A&B) |
| Display | Multi-language LCD | Multi-language LCD |
| Protections | DC 6mA, locks, DLM | DC 6mA, locks, DLM |
| Control | PWM (ISO/IEC 61851-1) | PWM (ISO/IEC 61851-1) |
| Ingress Protection | IP54 | IP54 |
| Mechanical resistance | IK10 | IK10 |
| Casing | ABS/PC | ABS/PC |
| Catalog no. | WNP00364013 | WNP00364013 |
| Branding | Logo printing option | Logo printing option |
| Mounting | Wall / aluminum pole | Wall / aluminum pole |
| Application | Indoor / Outdoor | Indoor / Outdoor |
| Warranty | 2 years | 2 years |
Pairs well with
Available! Ships within 1-2 business days
2-year warranty
Fast delivery and returns
Dual charging station - Circontrol eNext Park AC 2x22 kW
Specification
Product description
This is a modern, three-phase AC charging station with 2x22 kW power, designed for simultaneous charging of two electric vehicles. Ideal for public spaces, corporate parking lots, and commercial stations. Equipped with full connectivity — Ethernet, WiFi, 4G, and Bluetooth — and the OCPP 1.6J protocol ensuring integration with any charging management system.
The station is available in two versions — choose the appropriate one from the options above:
Socket version – two universal Type 2 sockets, the user connects their own charging cable.
Cable version – two Type 2 cables included in the set, ready to use without needing your own cable.
Key features and benefits:
Two charging points – simultaneous charging of two vehicles with up to 22 kW each, totaling 44 kW (64A).
Advanced connectivity – supports Ethernet, WiFi, 4G, and Bluetooth, enabling a constant internet connection and remote station management.
OCPP 1.6J protocol – full integration with charging management systems, also prepared for OCPP 2.0.1.
RFID reader – compliant with ISO/IEC 14443 A&B, MIFARE Classic/DESFire EV1, allowing for secure access authorization and user control.
Multi-language LCD display – clear screen with intuitive operation and information about the charging session.
Dynamic Load Management (DLM) – automatic optimization of charging power throughout the electrical installation.
PWM power control – compliant with ISO/IEC 61851-1 ensuring precise control of the charging process.
Safety features – 6mA DC leakage detection, contactor welding detection, socket locks, protection against overload and unauthorized access.
Durable casing – IP54/IK10, ABS/PC material, reliable in all weather conditions.
Personalization – possibility to place your own logo, choice of wall mounting or aluminum pole.
Technical data:
| Parameter | Socket version | Cable version |
|---|---|---|
| Max. power | 2x 22 kW | 2x 22 kW |
| Number of points | 2 | 2 |
| Connector | Type 2 socket | 2x Type 2 cable |
| Connectivity | Ethernet, WiFi, 4G, Bluetooth | Ethernet, WiFi, 4G, Bluetooth |
| Protocol | OCPP 1.6J / ready for 2.0.1 | OCPP 1.6J / ready for 2.0.1 |
| Authorization | RFID (ISO/IEC 14443 A&B) | RFID (ISO/IEC 14443 A&B) |
| Display | Multi-language LCD | Multi-language LCD |
| Protections | DC 6mA, locks, DLM | DC 6mA, locks, DLM |
| Control | PWM (ISO/IEC 61851-1) | PWM (ISO/IEC 61851-1) |
| Ingress Protection | IP54 | IP54 |
| Mechanical resistance | IK10 | IK10 |
| Casing | ABS/PC | ABS/PC |
| Catalog no. | WNP00364013 | WNP00364013 |
| Branding | Logo printing option | Logo printing option |
| Mounting | Wall / aluminum pole | Wall / aluminum pole |
| Application | Indoor / Outdoor | Indoor / Outdoor |
| Warranty | 2 years | 2 years |
Station type
Specifies where and how the station is mounted and what its purpose is.
- Wallbox (wall-mounted) — mounted directly on the wall, ideal for a garage or parking space
- Freestanding post — mounted on a dedicated post, e.g., outside a building or in a parking lot
- Portable — mobile charger, can be plugged into a standard socket or a reinforced circuit
- Public station — designed for use by many users, e.g., in commercial car parks
Charging level
Determines the speed and type of electric vehicle charging.
- Level 1 (AC 230V) — slow charging via a standard household socket, up to 2.3 kW
- Level 2 (AC 400V) — faster home or business charging, from 3.6 kW to 22 kW — the most popular choice
- Level 3 (DC) — fast direct current charging from 50 kW upwards, charges a car to 80% in 20–40 minutes
Manufacturer
The brand that designed and manufactured the charging station.
- Arinea / Ultron — Polish manufacturer, DC and AC stations for businesses and public charging points
- Circontrol — Spanish manufacturer with 30 years of experience, home and commercial charging stations
- Besen — Premium manufacturer at a good price, home charging stations with a mobile application
- Wallbox — Leading European manufacturer of smart chargers with design and app
- Delta — Global manufacturer of DC fast charging stations for public use
Color
Charging station casing color.
- White — universal, fits any environment, the most popular choice for home use
- Black — elegant, modern look, recommended for garages and company parking lots
- Gray — neutral, discreet, often used in commercial spaces
Phase type
Specifies the electrical requirements of the installation and the maximum charging power.
- Single-phase (1×230V) — up to 7.4 kW, a standard outlet or dedicated circuit is sufficient, simple and inexpensive installation
- Three-phase 11 kW (3×16A) — faster charging, requires a three-phase connection, a good choice for home and business
- Three-phase 22 kW (3×32A) — maximum AC power, for heavily used vehicles and fleets
- DC (direct current) — from 50 kW, fastest charging, requires specialized installation
Key product features
Szybkie ładowanie and Publiczne ładowanie
22 kW
Circontrol
Białe
Trójfazowy
Nowy
FAQ
— frequently asked questions
How to pass an electromobility audit?
An electromobility audit requires an assessment of a building's electrical installation. Our team will help you through the entire process — from technical assessment to selecting the appropriate charging station.
Can the housing community forbid me from installing a charging station?
The community cannot completely prohibit installation, but it may require consent. We assist in preparing documentation and communicating with the community.
How quickly can I charge my car with a Wallbox?
Charging time depends on the model of the charging station and battery capacity. A 7.4 kW station will charge most electric cars in 6–8 hours, while a 22 kW station can do it in as little as 2–3 hours.
Who can install a charging station?
Installation may only be carried out by a qualified electrician. Wallbox cooperates with certified installers throughout Poland – we can recommend a specialist in your area.
Does the charging station work in all weather conditions?
Yes – our stations are IP54/IP65 certified, which means full protection against rain, snow and dust. They operate flawlessly all year round.
